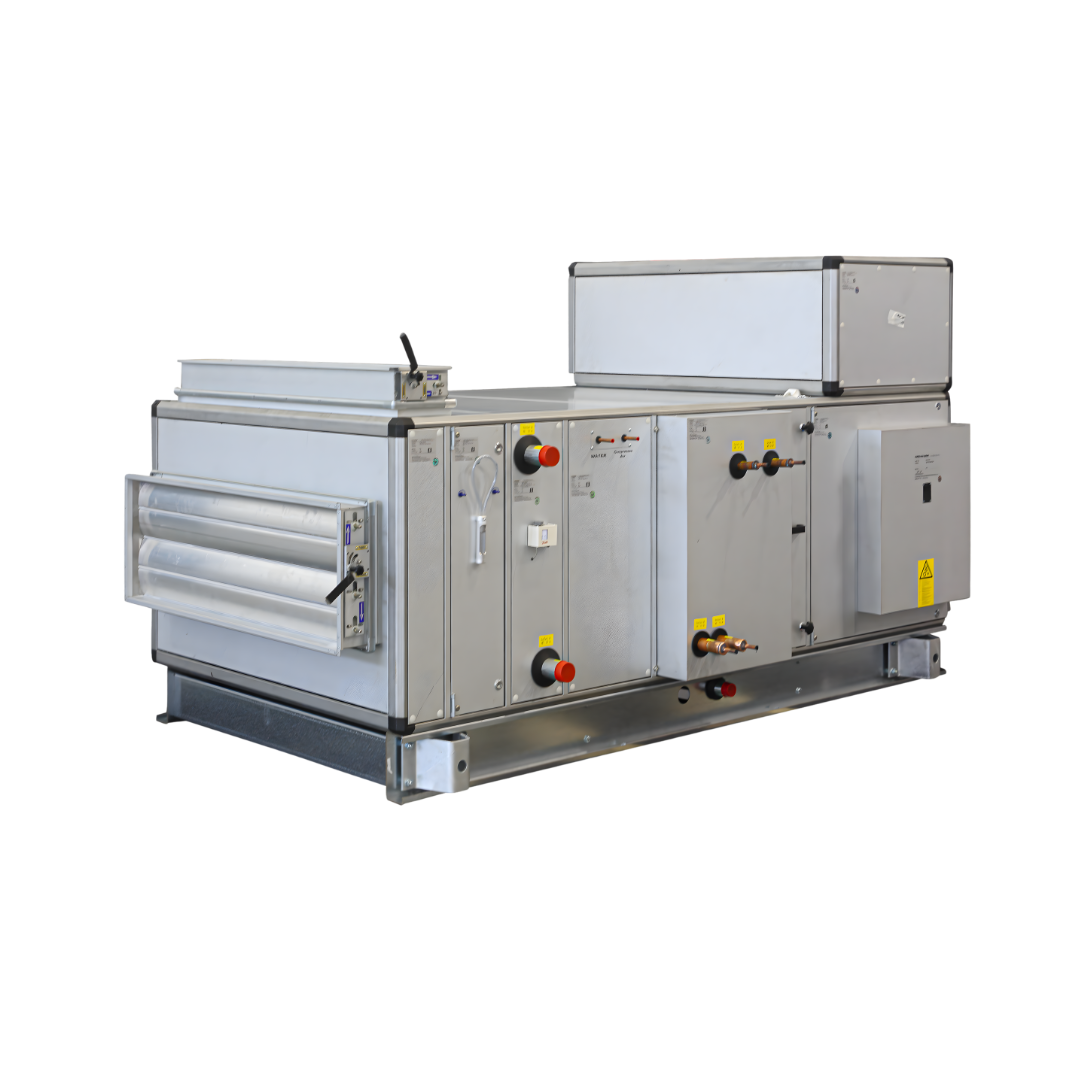

Air-Handling Unit ZCR

The air handling unit type ZCR is designed specially for marine installations for air conditioning.

  • Flexible and compact air handling system
  • Available in 10 sizes
  • Air quantities from 0.3 to 10.5 m3/s – maximum airflow depends on the incorporated functions.
  • Maximum negative pressure is 2000 Pa
  • Maximum positive pressure is 1500 Pa in casing and 2500 Pa in discharge section
  • Low power consumption with high performance fans
  • Easy maintenance and cleaning
  • Options
    • Energy recovery
    • Enthalpy exchanger or return air
    • Integrated automatic controls
    • Hot water, steam or electric heating coils
    • Cooling coils for water or direct expansion
    • Steam humidifier
    • Inspection room
    • Mixing and recirculation dampers
    • Wide variety of arrangements and accessories
    • Centrifugal fans
    • Silencers
